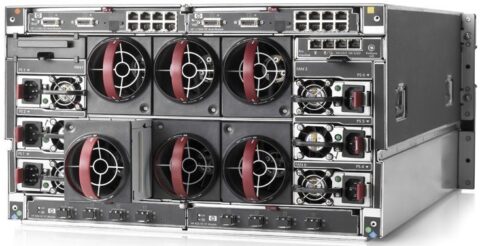

HP Blade c3000 Enclosure

محوطه C3000 BLADESYSTEM قابلیت پشتیبانی از 8 تیغه سرور دارد . این محوطه قابلیت شبکه مازاد قابل جایگزین و پیوستن تیغه ها و ذخیره سازی از طریق این شبکه را دارا مباشد .

از قابلیتهای این دستگاه می توان به موارد زیر اشاره کرد :

*Up to 8 half-height server blades, 4 full-height server blades, and/or 4 expansion blades per enclosure
*Up to 3 redundant I/O interconnect fabrics (Ethernet, Fibre Channel, iSCSI, SAS, etc.) supported simultaneously within the enclosure.
*A single-phase power subsystem for flexibility in connecting to datacenter power, to UPSs, or to low-line (100VAC to 110VAC) wall outlets.
*Choice of AC or DC power supplies.
*PARSEC enclosure design – Parallel, redundant and scalable cooling and airflow design.
*Up to six (6) hot-plug HP Active Cool 100 Fans.
*Redundant hot-plug cooling, redundant hot-plug power supplies, redundant connections, redundant interconnect modules, and optional redundant BladeSystem Onboard Administrator management module.

از قابلیتهای نرم افزار مدیریتی آن می توان به موارد زیر اشاره کرد :

*Robust, multiple enclosure setup and control.
*Reports asset and inventory information for the devices in the enclosure.
*Reports thermal and power information, including real-time actual power usage per server and per enclosure.
*Front-mounted Insight Display for easy management at the deployment site.
*Integrated access to all server blade iLOs from a single cable.
*Provides integrated access to interconnect bay device management ports from the single Onboard Administrator cable.
*Single sign-on capability for all devices in the enclosure.
*Role-based security locally and/or with LDAP directory services.
*Provides a wizard-based initial setup process for easy configuration.
*An optional DVD drive for local software deployment, and HP SmartStart deployment
*An optional local KVM interface for connection to KVM switches.
